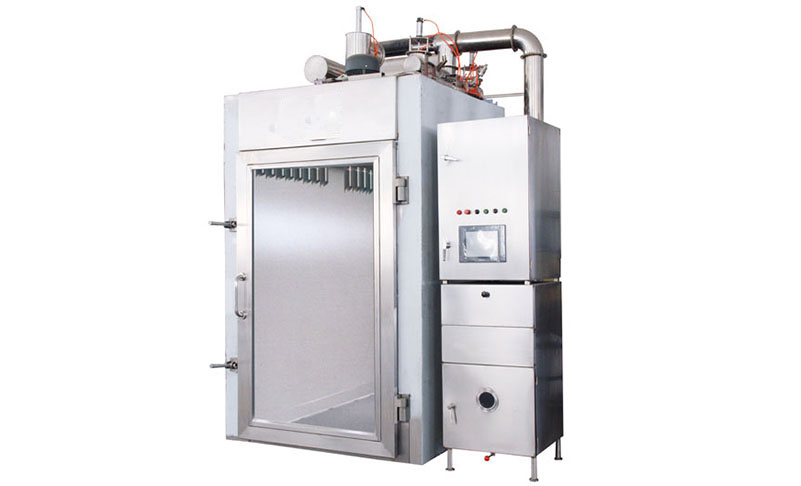

Smoke meat chamber is completely constructed of stainless steel SUS 304 and can be easily cleaned. The standard smoking house, air is circulated 14 times per minute with a specially design circulating fan. A specially designed mixing chamber enables you to combine low temperature and high temperature air, smoke and low pressure steam so that the product in the smokehouse can be perfectly processed.Ensures a uniformly cooked product with constant core temperatures and standardized smoked color.
Cost efficient solution to producing your own smoked meats, sausage, jerky, poultry, wild game or seafood with old-fashioned goodness and aromatic natural smoke flavor.
Specifications | Model | |||
ZXL-250 | ZXL-500 | ZXL-500 (DualChannel) | ZXL-1000 | |
Capacity (kg/Time) | 250 | 500 | 500 | 1000 |
Power (KW) | 7.5 | 13.5 | 13.5 | 27 |
HP Steam Pressure (Mpa) | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
LP Steam Pressure (Mpa) | 0.25~0.28 | 0.25~0.28 | 0.25~0.28 | 0.25~0.28 |
LP/HP Temperature (℃) | 110 | 110 | 110 | 110 |
Rated Voltage (V) | 380 (can change as need) | 380 | 380 | 380 |
Skip-car Dimensions (mm) | 1000*980*1880 | 1000*980*1880 | 1000*980*1880 | 1000*980*1880 |
Weight (Kg) | 2000 | 2100 | 2100 | 3400 |
Dimensions (mm) | 1680*2165*3280 | 2500*2300*3280 | 2500*2300*3280 | 5000*2300*3280 |
